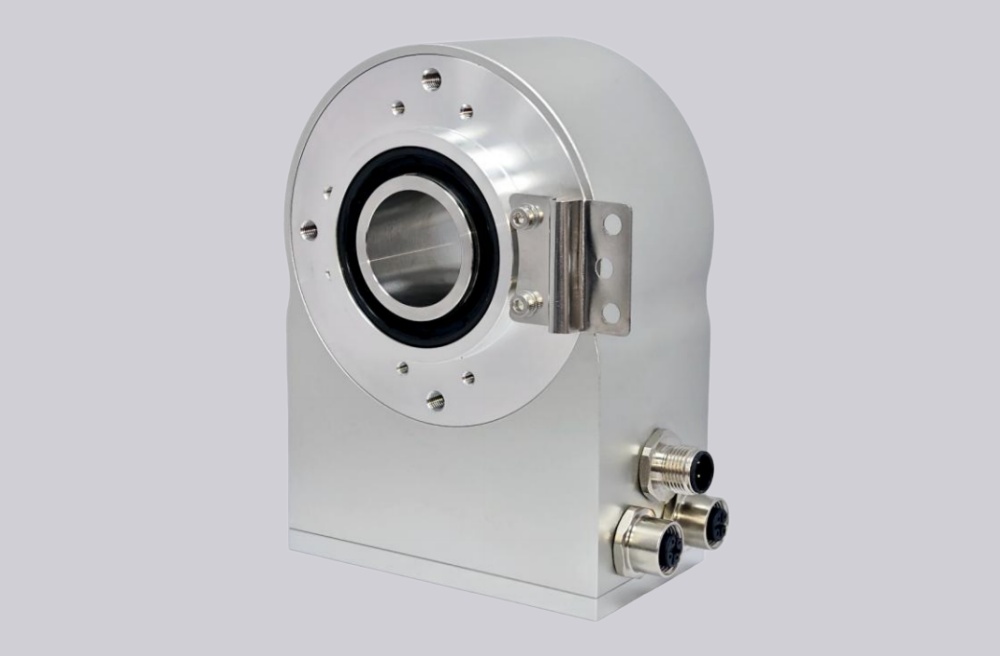

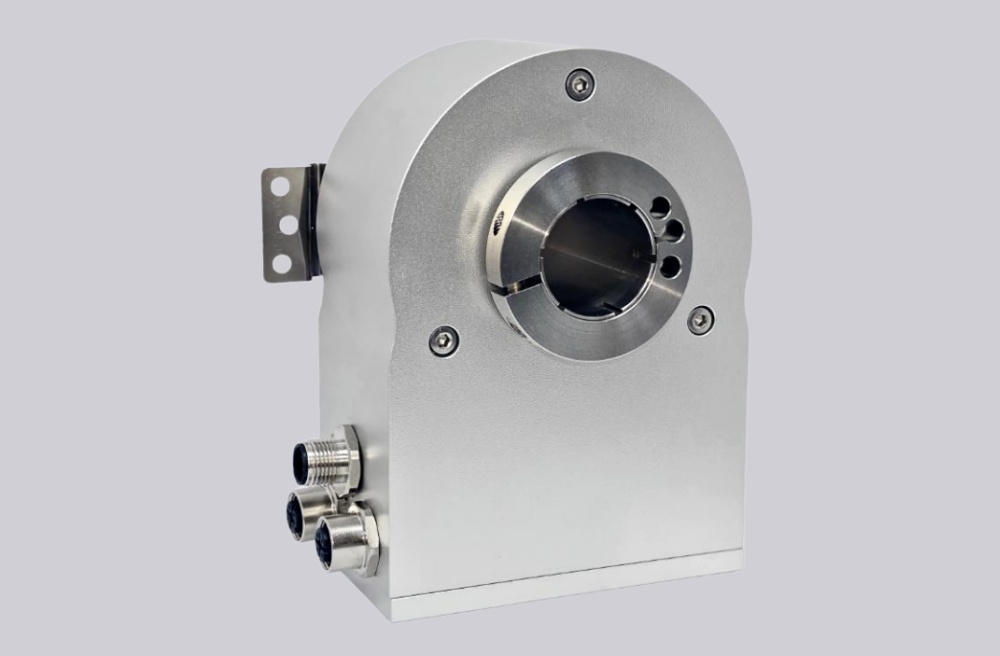

Large through-bore design with PROFINET interface simplifies installation and system integration. High-precision optical sensing technology supports both single-turn and multi-turn absolute position measurement. Single-turn resolution is available up to 25 bit, with standard multi-turn resolution up to 14 bit. PROFINET IO communication supports data rates up to 100 Mbit/s and PROFINET specification version 2.44, with higher multi-turn capacity available as a custom option. Excellent resistance to magnetic interference, together with LED status indication, enables reliable operation and convenient diagnostics. Built-in reverse polarity and short-circuit protection helps reduce the risk of encoder damage caused by incorrect wiring.
Product Specifications
| Product Series | SAS/M90A |
|---|---|
| Shaft Type | Ø90 mm, Hollow Shaft |
| Shaft Diameter | Ø10–28 mm |
| Housing Material | Aluminum (Stainless steel housing optional) |
| Supported Functions | RT, MRP, FSU |
| Supported Profiles | 81, 82, 83, 84, 86, 87, 88, 89, 860, 862 |
| Conformance Class | Conformance Class B |
| Function | Single-turn or Multi-turn |
| Supply Voltage | 10–30 VDC |
| Single-turn Resolution | 16 bit / 65536; 25 bit / 33554432 |
| Number of Revolutions | 1 revolution (single-turn); 16384 revolutions / 14 bit |
| Power Consumption | ≤2 W |
| Programmable Functions | Resolution, speed unit, preset (zero position), counting direction, position value scaling |
| Transmission Rate | 10/100 Mbps, auto-negotiation |
| Diagnostics | Overspeed, overtemperature |
| Reverse Polarity Protection | Yes |
| Short-circuit Protection | Yes |
| Surge and ESD Protection | Yes |
| Operating Speed | 6000 rpm |
| Shaft Load | Radial: 200 N; Axial: 100 N |
| Degree of Protection | IP65 |
| Starting Torque | <0.05 Nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Shock Resistance | 1000 m/s², 6 ms (100 g) |
| Vibration Resistance | 20 g |
| Electrical Connection | 3 × PG9 cable glands; 3 × M12 connectors |
| Connection Direction | Radial |
Electrical Connection
| Connection Direction | Radial |
| Bus Port 1 | M12, female, 4-pin, D-coded |
| Power Connector | M12, male, 4-pin, A-coded |
| Bus Port 2 | M12, female, 4-pin, D-coded |
Terminal Assignment
| M12, 4-pin Connector | ||||
| Pin | Port 1 and Port 2 | Core Colour | Power | Core Colour |
|---|---|---|---|---|
| 1 | Tx + | Yellow | VCC | Brown |
| 2 | Rx + | White | — | — |
| 3 | Tx - | Orange | 0 V | White |
| 4 | Rx - | Blue | — | — |
Connector Pin View
M12, 4-pin, D-coded
M12, 4-pin, D-coded

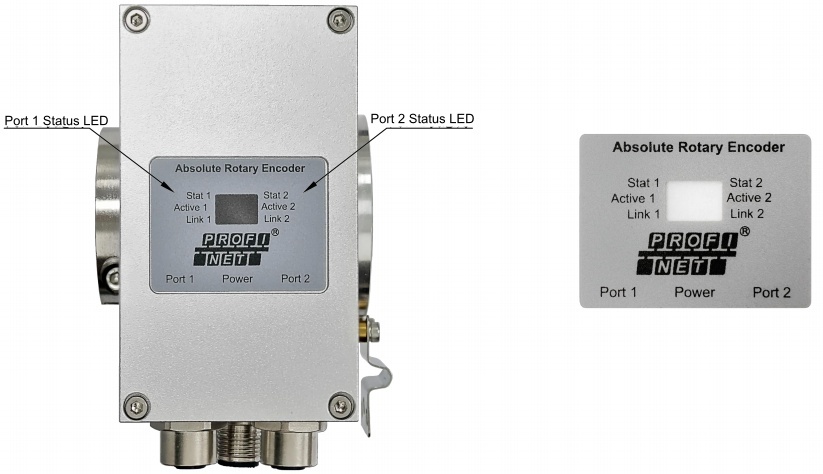

LED Indicator Description
| LED | Colour | Description |
|---|---|---|
| Link 1 | Green | Port 1 Ethernet connection indicator |
| Active 1 | Yellow | Port 1 data transmission indicator |
| Link 2 | Green | Port 2 Ethernet connection indicator |
| Active 2 | Yellow | Port 2 data transmission indicator |
| Stat 1 | Red | Status indicators; see the table below for details |
| Stat 2 | Green |
| Stat 1 Red | Stat 2 Green | Status Information |
|---|---|---|
| Off | Off | No power supply |
| On | Off | Hardware error |
| On | On | Network communication error (hardware) |
| Flashing | Flashing | Network communication error (software) |
| Flashing | On | Network parameter configuration error |
| Off | Flashing | Encoder parameter configuration error |
| On | Flashing | Port connection error |
| Off | On | Normal data exchange |
| Note: Flashing frequency: 2 Hz. | For more details, please refer to the user manual. | |

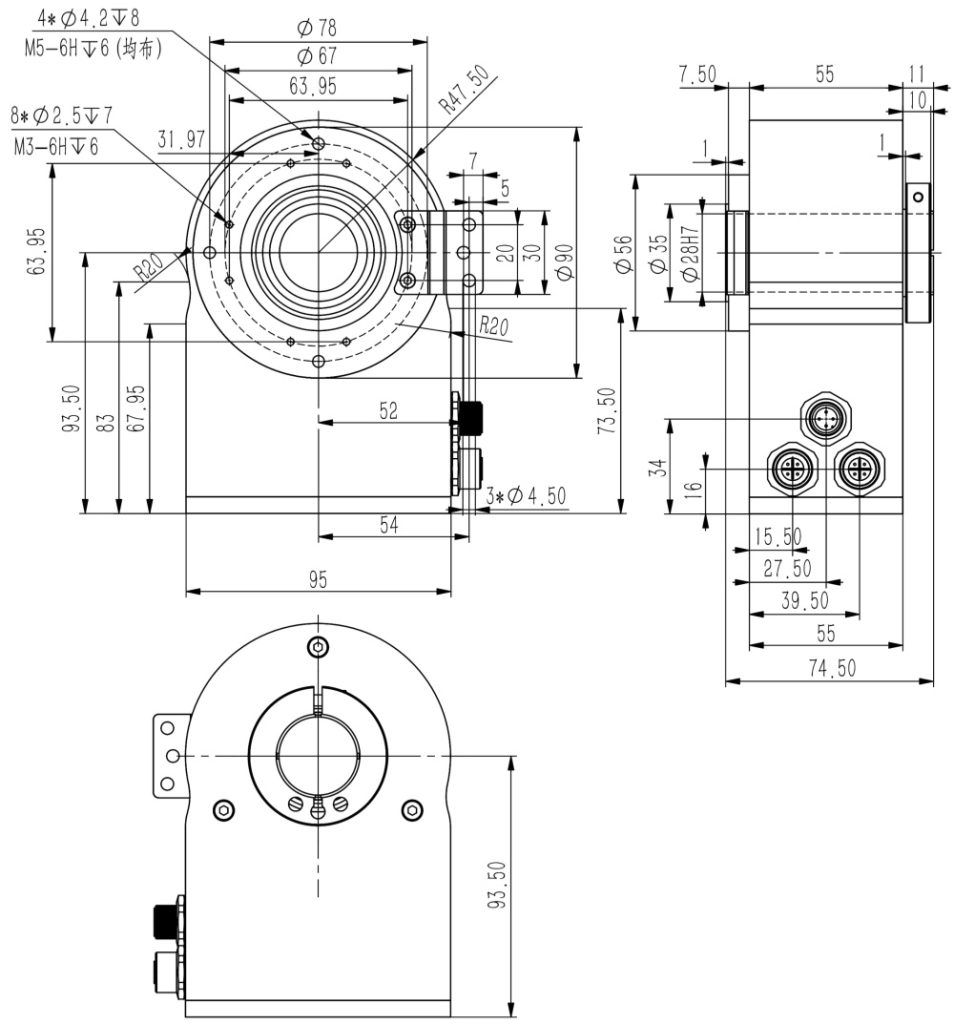

Mounting Dimensions
Mounting Dimensions
SAS/M90A
Model Selection
| SA | ① | 90 | ② | - | PN | ④ | ⑤ | - | ⑥ | - | ⑦ | ⑧ | ⑨ |
Note: Custom shaft/bore diameters, cable lengths, and interface requirements are available upon request.
