Industrial Precision 1 m, 2 m, 3 m Draw-Wire Displacement Sensor
Measurement range: 0…3000 mm, universal selectable output signals, self-assembly possible.
Selectable digital or analog output, incremental or absolute encoder.
Aluminum alloy construction, precision helical winding, automatic cable alignment, consistent stroke per revolution, high repeatability.
Protection rating up to IP64, suitable for dimensional and positional measurements in any field.
Compact installation space, high measurement accuracy, high reliability, rubber-sealed cable exit, long service life, minimal maintenance, easy installation.
Technical Data
| Product series | SALS80-J01M | SALS80-J02M | SALS80-J03M |
|---|---|---|---|
| Description | Wire draw mechanism for servo flange with 6 mm shaft or clamping flange with 10 mm shaft | ||
| Items supplied | Available as wire draw mechanism only (without encoder) or with integrated encoder | ||
| Measurement range | 0 m … 1 m | 0 m … 2 m | 0 m … 3 m |
| Reproducibility | ≤ 1 mm | ||
| Linearity | ≤ ±2 mm | ||
| Hysteresis | ≤ 2 mm | ||
| Weight | 1.1 kg Wire draw mechanism | 1.3 kg Wire draw mechanism | 1.5 kg Wire draw mechanism |
| Weight | 7.1 g/m Measuring wire | ||
| Measuring wire material | Highly flexible 316 stainless steel wire | ||
| Material, spring housing | Die-cast zinc | ||
| Housing material, wire draw mechanism | Aluminum (anodized), die-cast aluminum | ||
| Length of wire pulled out per revolution | 200 mm | ||
| Actual wire draw length | 1.2 m | 2.2 m | 3.2 m |
| Spring return force | 6 N … 14 N1) | ||
| Measuring wire diameter | 1.35 mm | ||
| Wire acceleration | 40 m/s² | ||
| Operating speed | Max. 8 m/s | ||
| Resolution | Length of wire pulled out per revolution ÷ number of encoder steps per revolution = resolution of the wire draw mechanism and encoder combination | ||
| Ambient operating temperature | -30 °C … +70 °C | ||
| Enclosure rating mechanic | IP64 | ||
| Life of wire draw mechanism | Typ. 1,000,000 cycles2) 3) | ||
1) This value was measured at an ambient temperature of 25 °C. This value may vary with temperature.
2) Average value depends on load type.
3) Service life depends on the type of load. Influencing factors include ambient conditions, installation situation, measuring range used, operating speed, and acceleration.

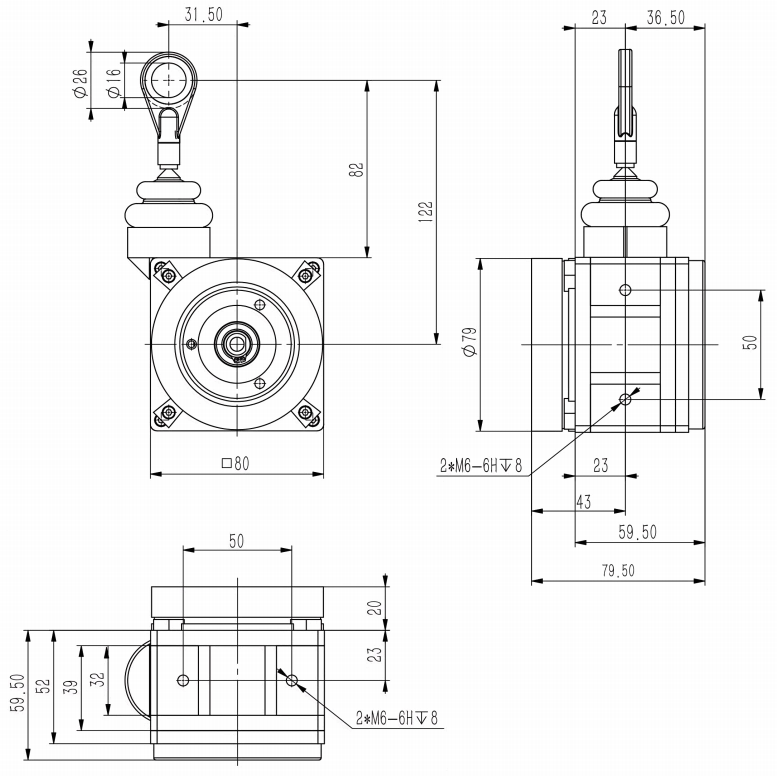

Dimensional Drawing
SALS80-J02M
SALS80-J02M
SALS80-J03M
Model Selection
| SALS80-J | ① | M | - | ② |
Note: Select the measuring range and encoder mounting configuration to generate the complete model number.
