Industrial precision 15 m and 20 m draw-wire displacement sensors
Measuring range from 0 … 20,000 mm, versatile output signals available, self-assembly possible
Selectable digital or analog output, incremental or absolute encoder options
Aluminum alloy construction, precision spiral lifting, automatic cable winding, consistent travel per revolution, high repeatability
Maximum protection rating up to IP64, suitable for dimensional and position measurements across all fields
Compact installation space, high measurement accuracy, high reliability, rubber-sealed cable exit, long service life, low maintenance, easy installation
Product Specifications
| Product Series | SALS130-J15M | SALS130-J20M |
|---|---|---|
| Description | Draw-wire measurement mechanism for servo flange with 6 mm shaft or clamping flange with 10 mm shaft | |
| Scope of Supply | Available as mechanism only (without encoder) or integrated encoder version | |
| Measuring Range | 0 m … 15 m | 0 m … 20 m |
| Repeatability | ≤ 2 mm | |
| Linearity | ≤ ±10 mm | |
| Hysteresis | ≤ 6 mm | |
| Weight (mechanism only) | 5 kg | |
| Weight (draw wire) | 2.6 g/m | |
| Draw-Wire Material | Highly flexible 316 stainless steel wire rope | |
| Spring Sleeve Material | Plastic | |
| Housing Material | Aluminum (anodized) or die-cast zinc | |
| Cable Length per Revolution | 333 mm | |
| Actual Cable Length | 15.2 m | 20.2 m |
| Spring Return Force | 10 N … 20 N1) | 10 N … 20 N1) |
| Cable Diameter | 1.2 mm | 0.8 mm |
| Cable Acceleration | 40 m/s² | |
| Adjustment Speed | 10 m/s | |
| Resolution Description | Cable length per revolution ÷ steps per revolution = resolution of the draw-wire and encoder combination | |
| Operating Temperature | -30 °C … +70 °C | |
| Protection Rating | IP64 | |
| Service Life | Typical 500,000 cycles2) 3) | |
Mounting Dimensions

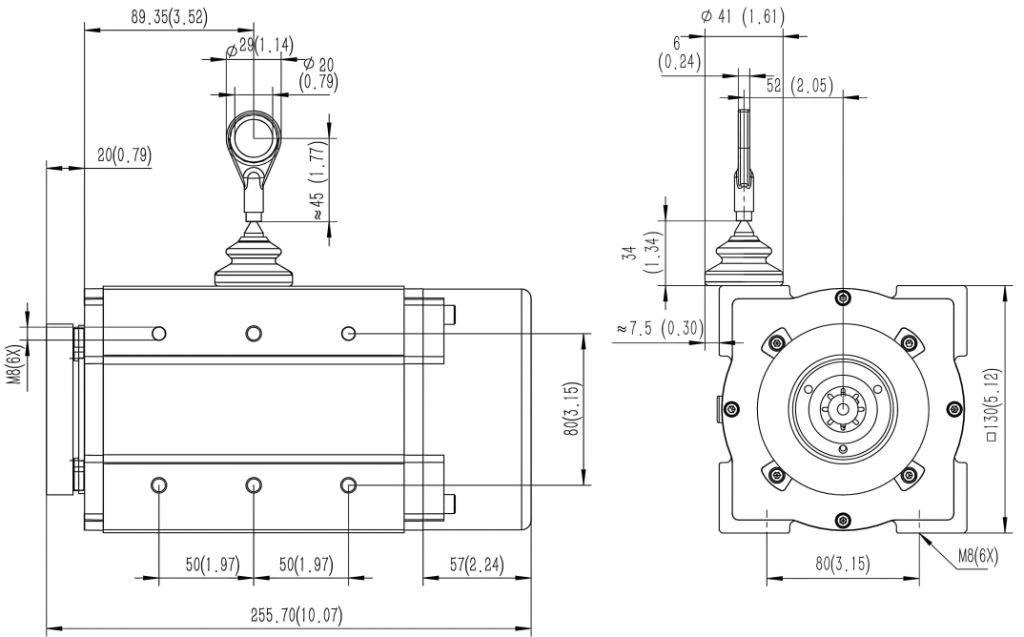

SALS130-J15M

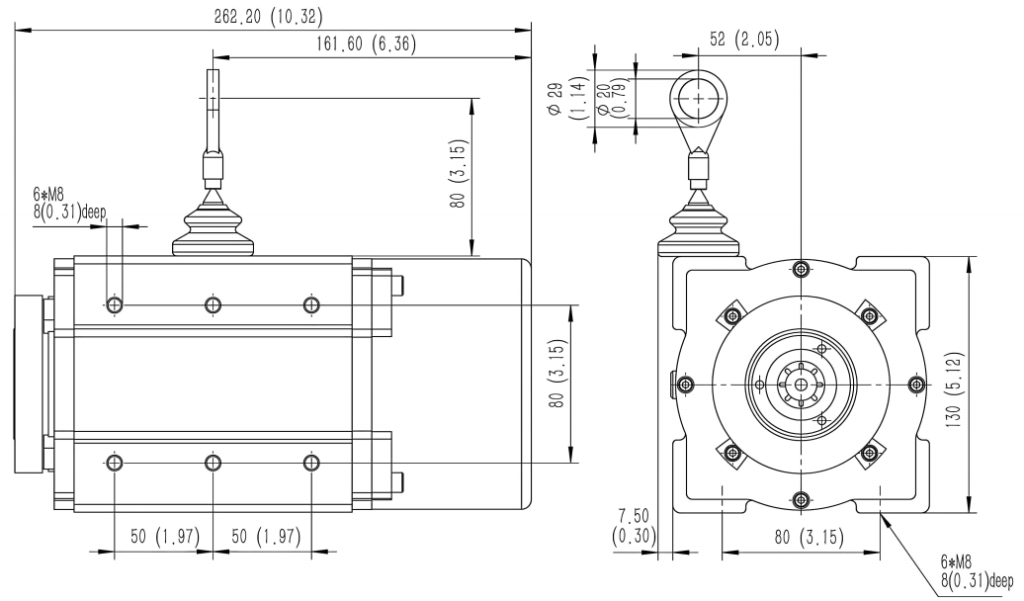

SALS130-J20M
