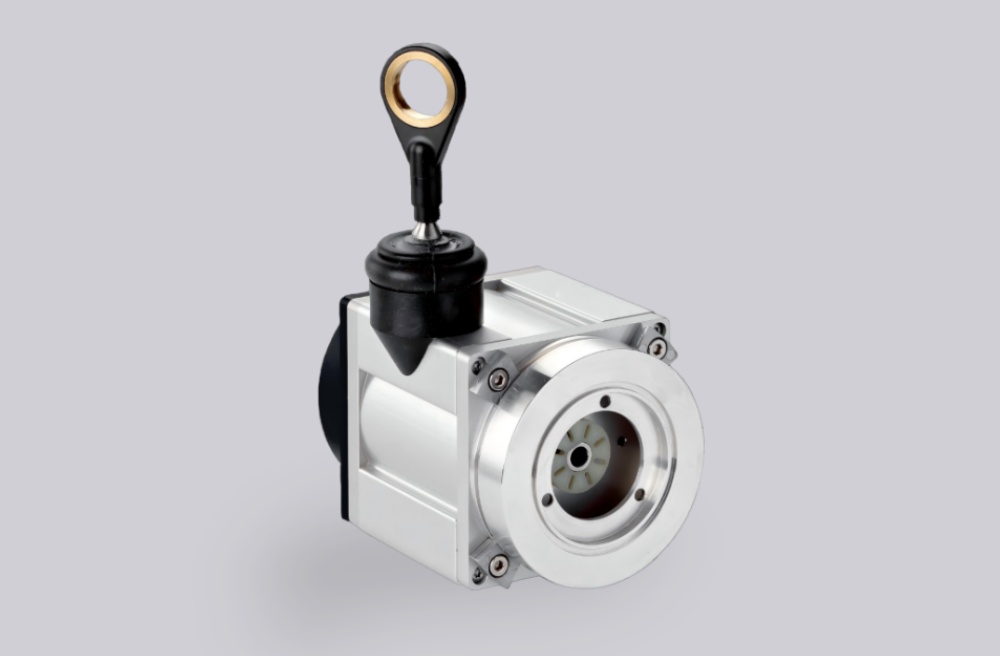

Industrial Precision 1 m, 2 m, 3 m Draw-Wire Displacement Sensor
Measurement range: 0…3000 mm, universal selectable output signals, self-assembly possible.
Selectable digital or analog output, incremental or absolute encoder.
Aluminum alloy construction, precision helical winding, automatic cable alignment, consistent stroke per revolution, high repeatability.
Protection rating up to IP64, suitable for dimensional and positional measurements in any field.
Compact installation space, high measurement accuracy, high reliability, rubber-sealed cable exit, long service life, minimal maintenance, easy installation.
Product Specifications
| Product Series | SALS80-J02M | SALS80-J03M |
|---|---|---|
| Description | Draw-wire traction mechanism for servo flanges with 6 mm shaft or clamping flange with 10 mm shaft | |
| Scope of Supply | Available as draw-wire mechanism only (without encoder) or supplied with integrated encoder | |
| Measuring Range | 0 m … 2 m | 0 m … 3 m |
| Repeatability | ≤ 0.2 mm | |
| Linearity | ≤ ±2 mm | |
| Hysteresis | ≤ 1 mm | |
| Weight (mechanism only) | 1.3 kg | 1.5 kg |
| Weight (draw-wire) | 7.1 g/m | |
| Draw-Wire Material | Highly flexible 316 stainless steel wire rope | |
| Spring Sleeve Material | Zinc die-cast | |
| Draw-Wire Box Housing Material | Aluminum (anodized) or zinc die-cast | |
| Length per Revolution | 200 mm | |
| Actual Cable Length | 2.2 m | 3.2 m |
| Spring Return Force | 6 N … 14 N | |
| Draw-Wire Diameter | 1.5 mm | |
| Draw-Wire Acceleration | 40 m/s² | |
| Adjustment Speed | 10 m/s | |
| Resolution | Cable extension per revolution ÷ encoder steps per revolution = resolution of draw-wire and encoder combination | |
| Operating Temperature | -30 °C … +70 °C | |
| Protection Rating | IP64 | |
| Service Life | Typ. 500,000 cycles | |

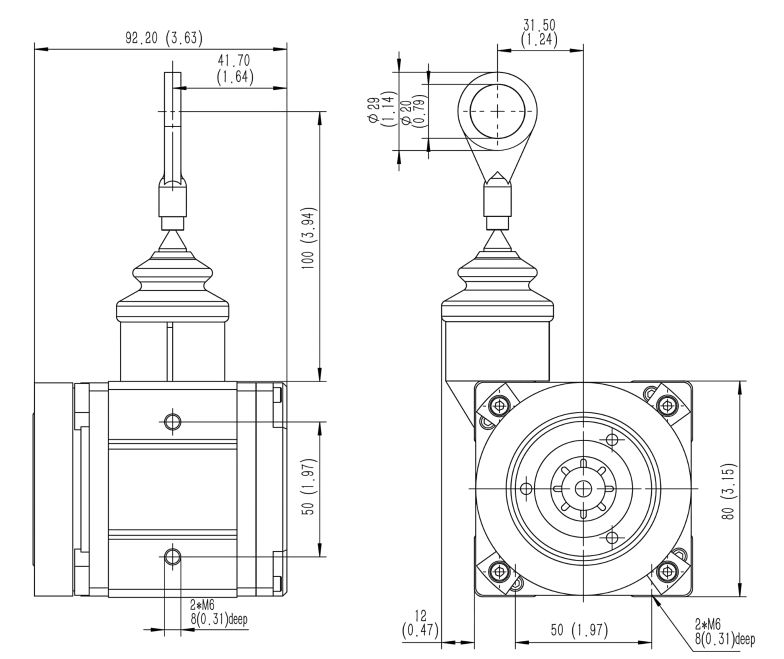

Mounting Dimensions
SALS80-J02M
SALS80-J03M
