4-20MA、0-20MA Absolute Encoder SAS/M58

Core components are 100% domestically manufactured, ensuring supply chain stability and reliable product quality.
High-precision magnetic sensing technology is adopted, supporting both single-turn and multi-turn encoder configurations.
Supports analog outputs (current:4-20MA、0-20MA), compatible with multiple control interfaces.
Single-turn resolution up to 16 bits; multi-turn resolution up to 14 bits for accurate position measurement.
High resistance to shock and vibration, suitable for harsh industrial environments.
Built-in reverse-polarity and short-circuit protection reduces the risk of damage caused by wiring errors.

Product Specifications (Analog Output Series)

Parameter	SAS/M58A (Solid Shaft)	SAS/M58C (Hollow Shaft)
Mechanical Type	Ø 58 mm solid shaft	Ø 58 mm hollow shaft
Shaft Diameter	Ø 6, 8, 10, 12, 15 mm (other sizes on request)
Housing Material	Aluminum (stainless steel optional)
Signal Output	Standard 4-20MA、0-20MA
Function	Single-turn or multi-turn
Supply Voltage	Standard 10–30 VDC
Single-turn Resolution	12-bit (4096), 13-bit (8192), 16-bit (65536)
Number of Turns	1 turn (single-turn); multi-turn standard 12-bit (4096 turns); optional up to 14-bit (16384 turns)
Current Consumption	70 mA
Load Current	80 mA
Signal Configuration	Per-turn value adjustable; total multi-turn range adjustable; direction configurable; preset position adjustable; external zero-point adjustable; analog output fine adjustment
Protection	Reverse polarity protection: Yes; short-circuit protection: Yes; lightning & ESD protection: Yes
Mechanical Performance	Max. speed: 6000 rpm	Shaft load: radial 200 N, axial 100 N
Environmental Rating	Protection class: IP65 or IP68; starting torque: < 0.01 Nm
Temperature Range	Operating: −30 °C … +85 °C (−40 °C optional); storage: −40 °C … +100 °C
Mechanical Strength	Shock resistance: 1000 m/s², 6 ms (100 g); vibration resistance: 20 g
Electrical Connection	Shielded cable 4×2×0.2–8 cores; M12 5-pin; M12 8-pin; M23 12-pin male flange connector
Cable Exit	Radial side exit, axial rear exit

Connector Pin View (Top View)

Connector Type	5-pin M12 Connector	8-pin M12 Connector	12-pin M23 Connector
Top View

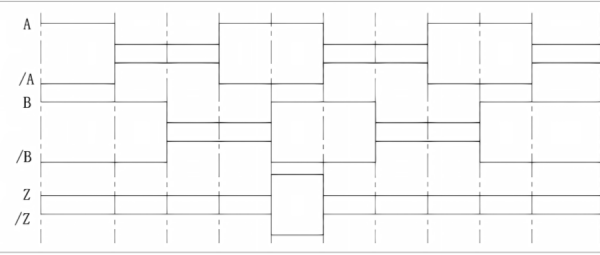

Signal Waveform

Mounting Dimensions

SAS/M58A

SAS/M58B

SAS/M58C

SAS/M58D
